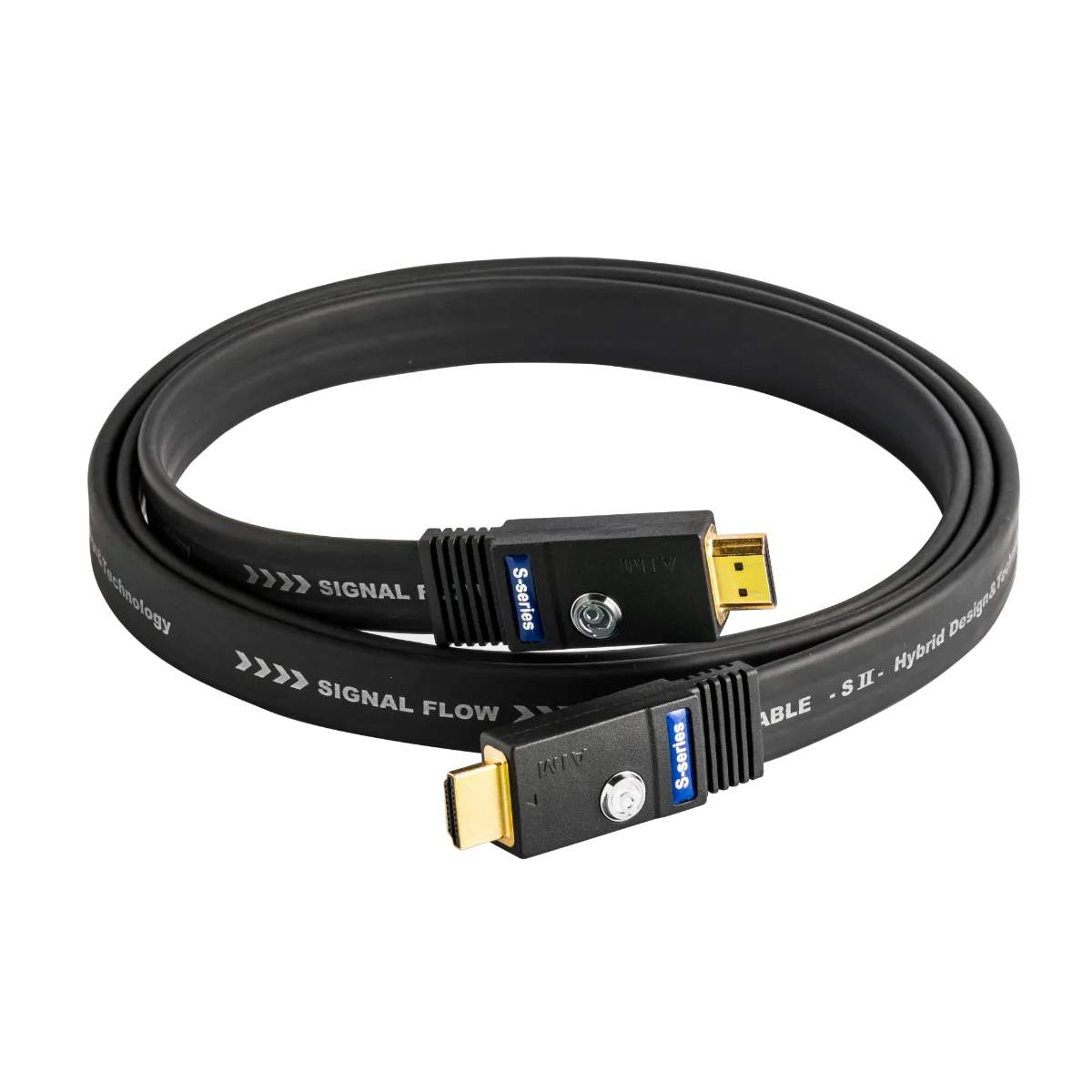

FLS2
High Performance HDMI cable
Sales end in January 31st, 2025
CEC
ARC
HDR*
HDR10*
HLG*
Dolby Vision*
* 12m and above length are only support CEC and ARC.
Features
Supports 4K/60p 4:4:4 24bit(18Gbps)*1 Note:Supports only up to 4K/60p 4:2:0 for 12m and 15m models.
Performs about 25% faster than the previous model.*2
Exhibits much greater flexibility and lightness with improved cable sheath material.

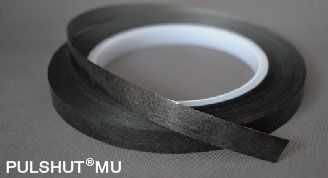

Demonstrates enhanced Electromagnetic Interference reduction properties with PULSHUT® MU(Asahi Kasei Corporation) attached to the backside of the connector.
Reduces unwanted Electromagnetic Interference by cutting Electromagnetic Interference emitted from the device and conduction noise from the power source.
PULSHUT® is a trademark of Asahi Kasei Corporation.
*1 All products except for FLS2-12 and FLS2-15 nidels are tested for 18Gbps transmission before shipment.
*2 Based on the comparison of the previous AVC-FLS10 model and new FLR2-10 model.
Specification
Maximum Resolution | Up to 10m 4K/60p 24bit (4:4:4) or 4K/60p 36bit (4:2:2) |
|---|---|
HDMI Standard | Up to 10m HDMI 2.0a Base |
Connector | 24K gold plated and die cast zinc alloy |
Connector Size | W20.8mm x H52.0mm x D11.3mm |
Cable Conductor | OFC(Oxygen-free copper) (5N) + Sterling silver plated |
Shield | High density braided, High performance aluminum shield(Quad Shield2) |
Cable Size | W18.0mm x H4.0mm |
Cable Color | Black |
Insulator | FM-PE x SKIN(Double layered structure:High performance expanded) |
Structure | Shortened the internal conductor a flat straight structure |
External Power Supply | Not necessary |
Example of connecting
* We do not guarantee connectivity with all commercially available devices. * Visit our website for 4K support details.
Product Lineup
Model Number
Length
FLS2-007
0.7m
FLS2-01
1m
FLS2-015
1.5m
FLS2-02
2m
FLS2-03
3m
FLS2-05
5m
FLS2-08
8m
FLS2-10
10m
FLS2-12
12m
FLS2-15
15m
Sales end in January 31st, 2025
