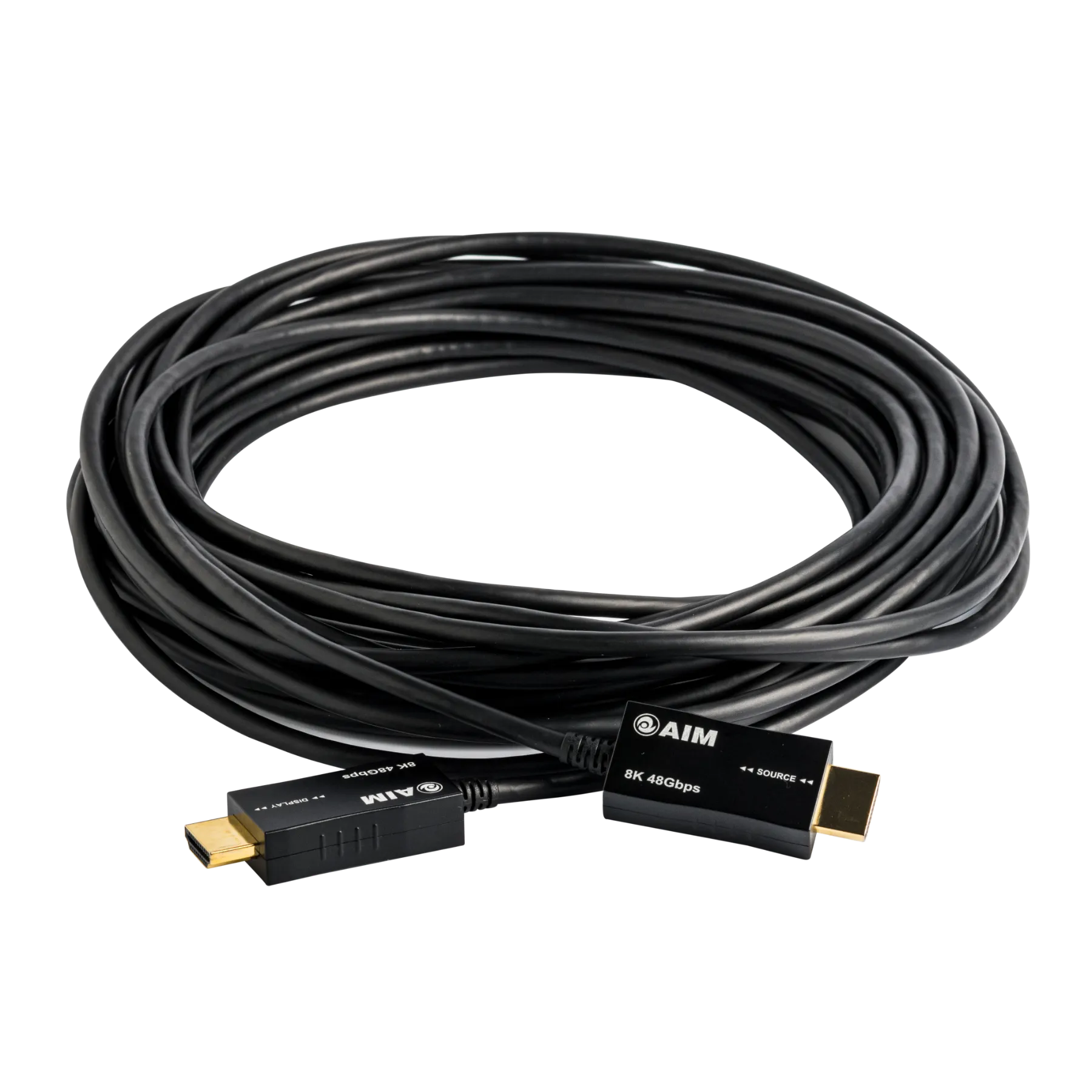

LS-U
Ultra High Speed Laser cable
CEC
eARC*
ARC*
HDR
HDR10
HLG
Dolby Vision
* Depends on the connection of equipment configuration, it may not be output correctly.
Features
HDMI2.1 standard certified cable
8K 60AB/4K 120AB stable transmission possible up to 20m in length
Equipped with new circuit made external power supply unnecessary
Specification
Maximum Resolution | 10K/120B *1 8K/60A 36bit(4:2:0) |
|---|---|
Connector | 24K gold plated |
Connector Size | W20.5mm x H11mm x D40mm |
Outer Diameter of the cable | 4.7Φ(for all models) |
Cable Conductor | Optical fiber for FRL signal line, other lines are copper wire |
Shield | Double layered aluminum shield |
Bend Radius | 25.4mm |
Cable Color | Black |
Insulator | PVC |
Cable Configuration | Hybrid of quartz fiber and copper wire |
External Power Supply | Not necessary |
HDMI Control Functions | HEC not supported |
*1 For 10k/120B transmission, DSC compression transmit signals compressed on the equipment side as defined by the HDMI standard.
Example of connecting
* We do not guarantee connectivity with all commercially available devices.

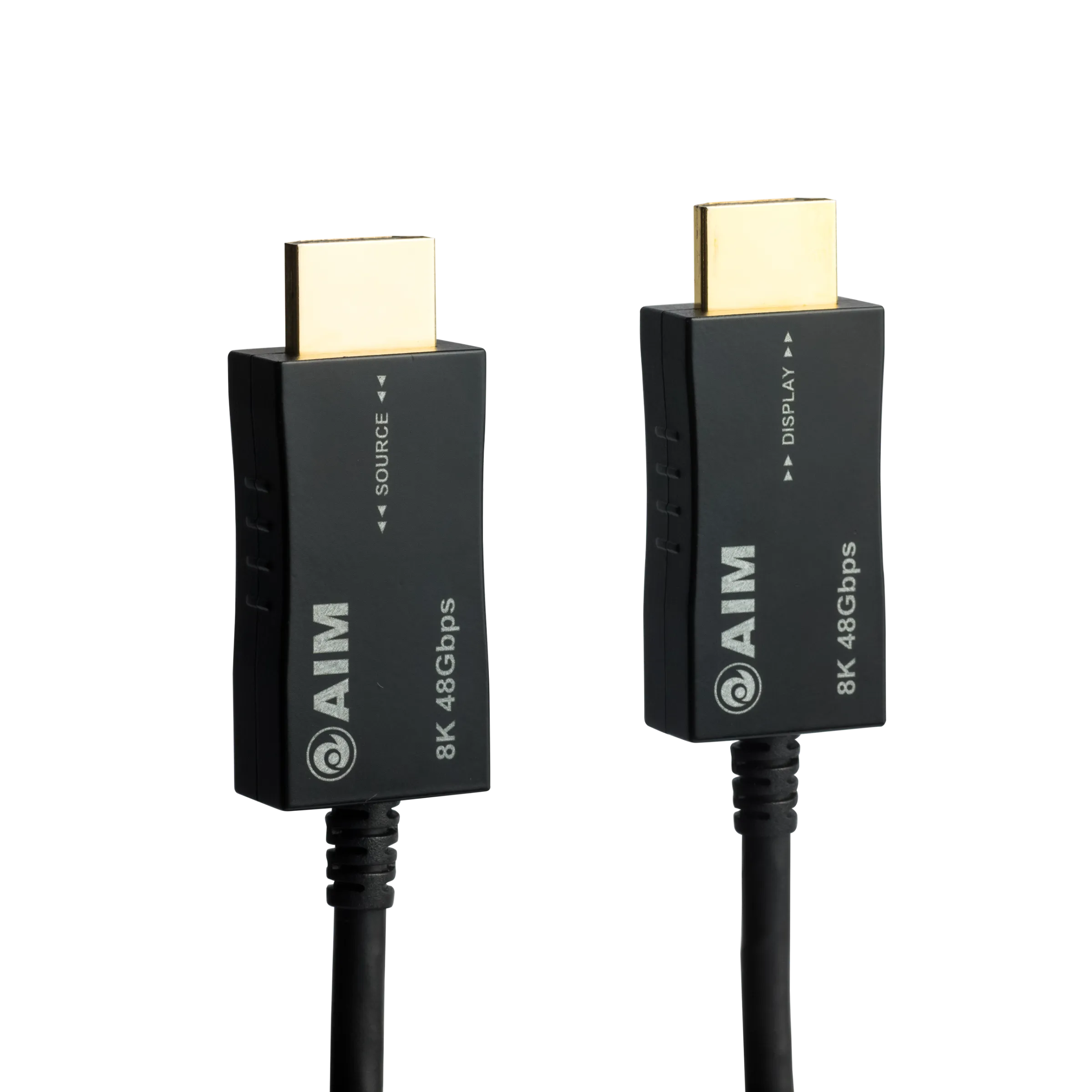

This cable has direction. Please connect to "Source" and "Display" in correct equipment. Connecting in opposite direction will cause malfunctioning.
Product Lineup
Model Number
Length
LS-U10
10m
LS-U15
15m
LS-U20
20m
