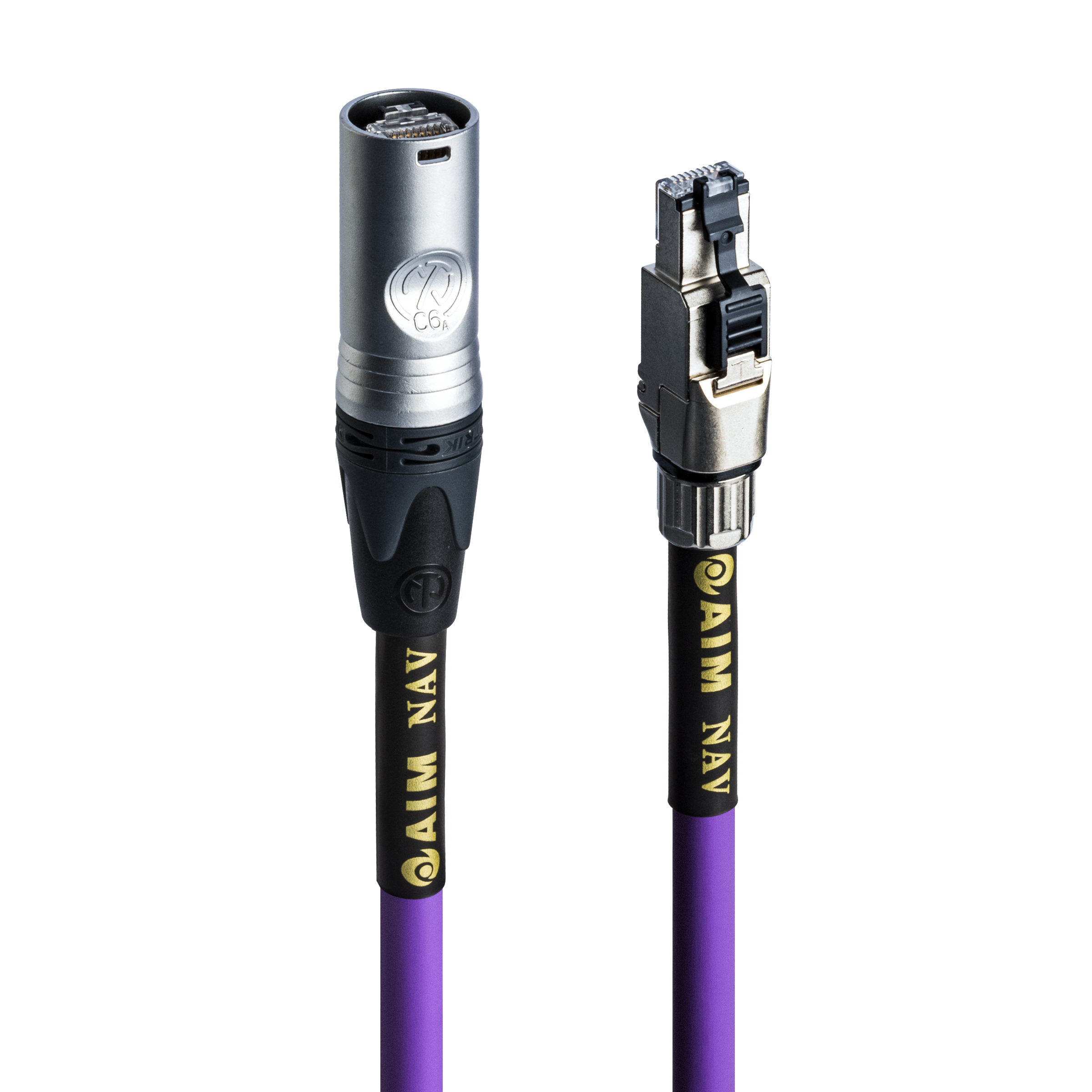

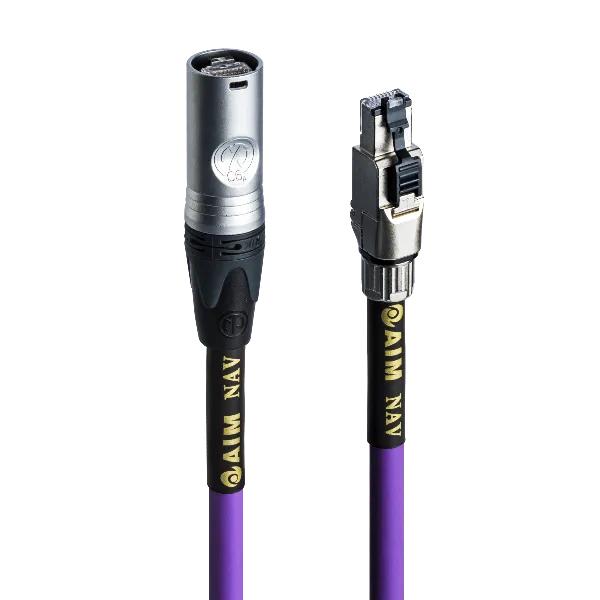

High Performance Ethernet cable
Features
Equipped with etherCON RJ45 connector trusted in professional audio, ensuring superior noise resistance
A high-level noise control became a reality by a high-performance three-layer shield structure that combines different materials.
The asymmetrical structure are designed to be less susceptible to the external environment.
*This content represents the characteristics of each product and is not an actual measurement value.
Specification
Connector | Connector A: 8P8C Modular etherCON connector |
|---|---|
Connector Size | etherCON RJ45 plug：W20.3mm x H75.5mm x D20.3mm |
Connector Structure | Diecast design with high resistance to electromagnetic interference |
Standard | Compliant with ANSI/TIA/EIA-568B |
Outside Diameter | 9Φ(mm) |
Cable Color | Purple |
Conductor | Single line (AWG24) |
Number of conductor | Twisted Pair x 4(8) |
Shield Structure | OFC (high pure oxygen free copper) |
Conductor Coating | Specially developed foamed polyethylene insulation |
Drain Wire | Asymmetric structure |
Cross-section Diagram
Utilizes the 3 layers of different materials shielding structure, using aluminum shield, copper shield and high density copper braided shield.
Drain Wire: Asymmetric Structure
The asymmetric design utilizing drain wires at the end of the connectors are asymmetrically installed (grounded and not grounded), the cable has to be installed in the correct direction, for the optimal performance.

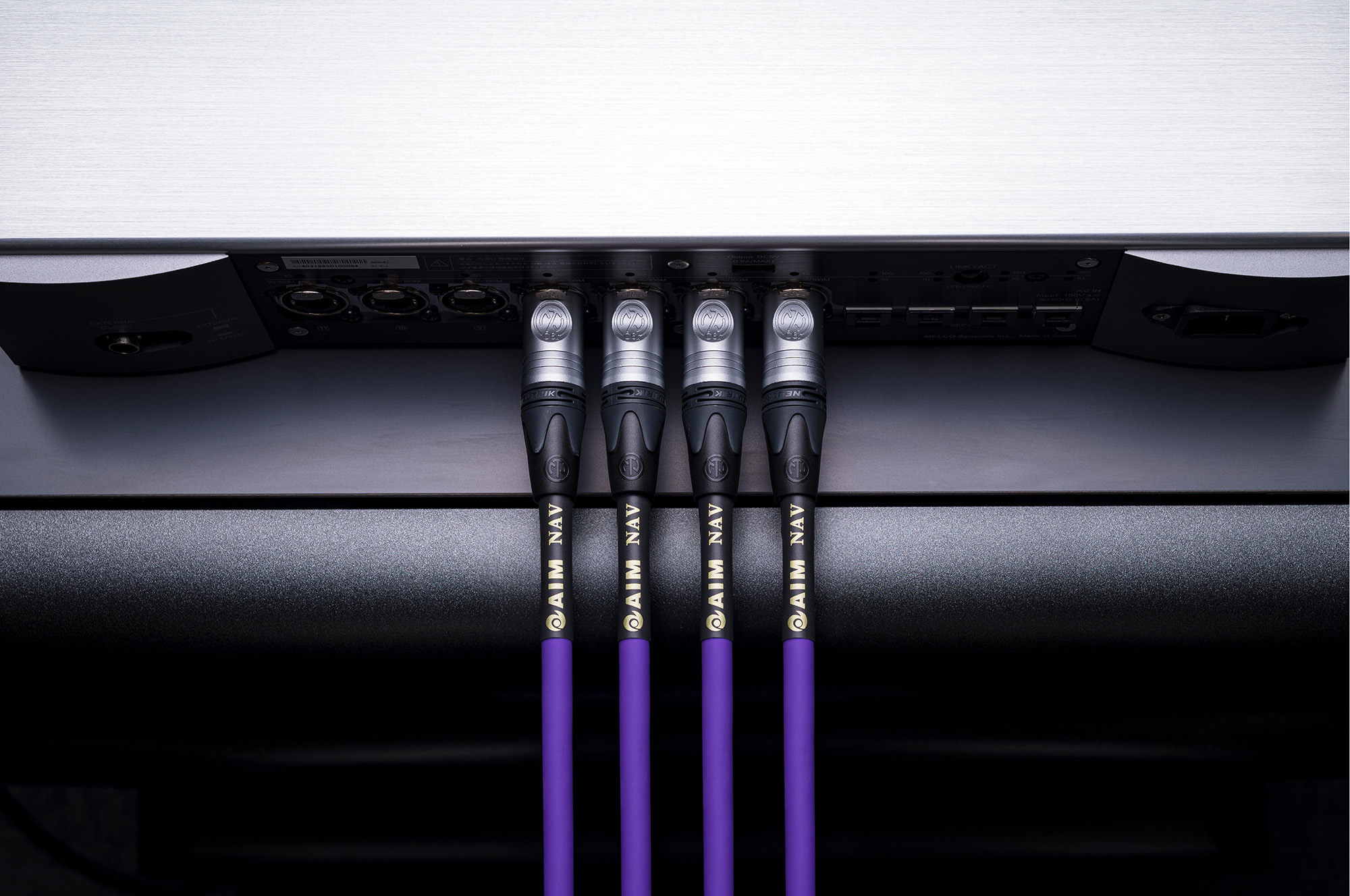

Example of Connection

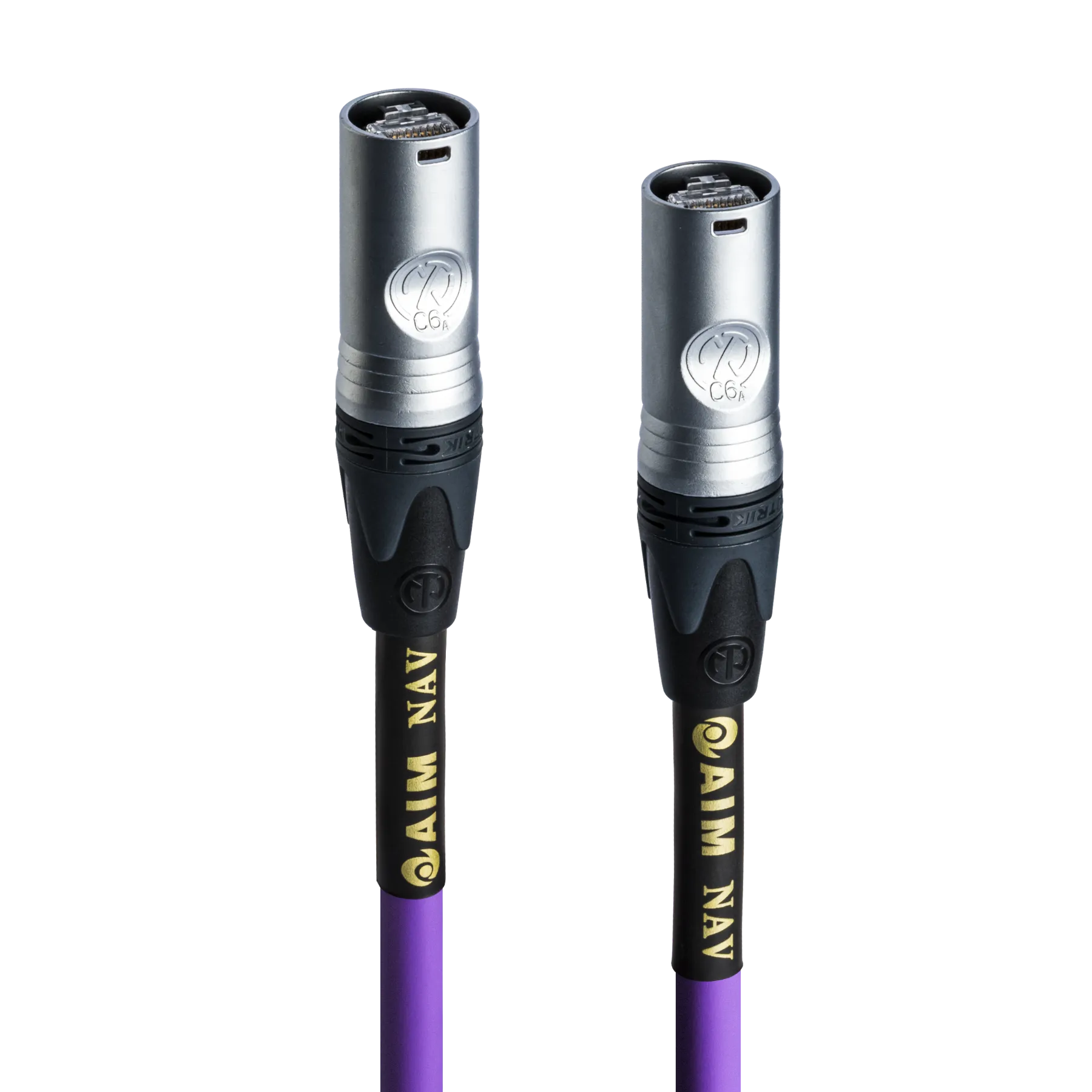

Product Lineup
Model Number
Length
NAV-005W
0.5m
NAV-010W
1m
NAV-015W
1.5m
NAV-020W
2m
NAV-030W
3m
NAV-050W
5m
Note: This product cannot be used with equipment that does not support the etherCON RJ45 plug.
