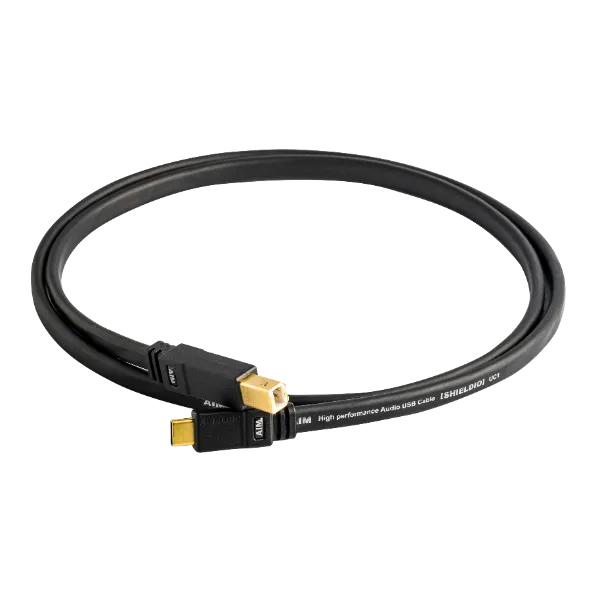

UC1
Audio USB cable
Features
Newly developed cable with optimal connector for TypeC / TypeB under the N-ZERO Concept.
Uses a oxygen-free copper hybrid conductor coated with pure silver.
A SP separate flat structure created to optimally control distance between the signal and power lines.
Mounts a filem stabilizer that produces powerful shielding effects and controls changes in characteristics.
Specification
Connector Type | USB "C"plug / USB "B"plug |
|---|---|
Connector Size | Type C: W12.20mm x H30.40mm x D8.20mm (Excluding protrusions) |
Contacts | Gold Plated |
Standards | USB 2.0(USB High/Full speed) |
Cable Size | 8.0mm x 4.5mm(Flat) |
Cable Color | Black |
Conductor Size | AWG21 & AWG26 |
Number of conductor | Twisted Pair x 2(4pcs) |
Cable Shield | Highly Efficient Aluminum Shield + High Density Copper Braid |
* All of the names and specifications of our products comply with the USB standards.
* Make sure that the power of the main unit is turned off, and then connect the USB cable.
* Please check the shape of the terminal carefully before connecting.
Example of connecting
Product Lineup
Model Number
Length
UC1-005
0.5m
UC1-010
1m
UC1-015
1.5m
UC1-020
2m
UC1-030
3m
