UM1
High resolution USB cable
Sales end in Mar, 2024
Features
For micro/mini connectors only. A pure silver coated conductor is used.
Adopts a conventional SP separate flat structure to restrain electromagnetic interference.
Mounts a film stabilizer that produces powerful shielding effects and controls changes in characteristics.
Achieves excellent overall performance with the shield structure applied even to the inner part of the connector.
Specification
■ A-Micro B
Connector Type | USB "A"plug / USB "Micro B"plug |
|---|---|
Connector Size | Type A: W15.50mm x H41.50mm x D7.60mm |
Connector Shield | All Around Copper Shell + Copper Shield |
Connector terminal | Gold Plated |
Standards | USB 2.0(USB High/Full speed) |
Cable Size | 6.5mm x 3.5mm(Flat Shape) |
Cable Color | Black |
Conductor Size | AWG28 |
Number of conductor | Twisted Pair x 2(4pcs) |
Cable Shield | High Quality Aluminum Shield |
■ A-Mini B

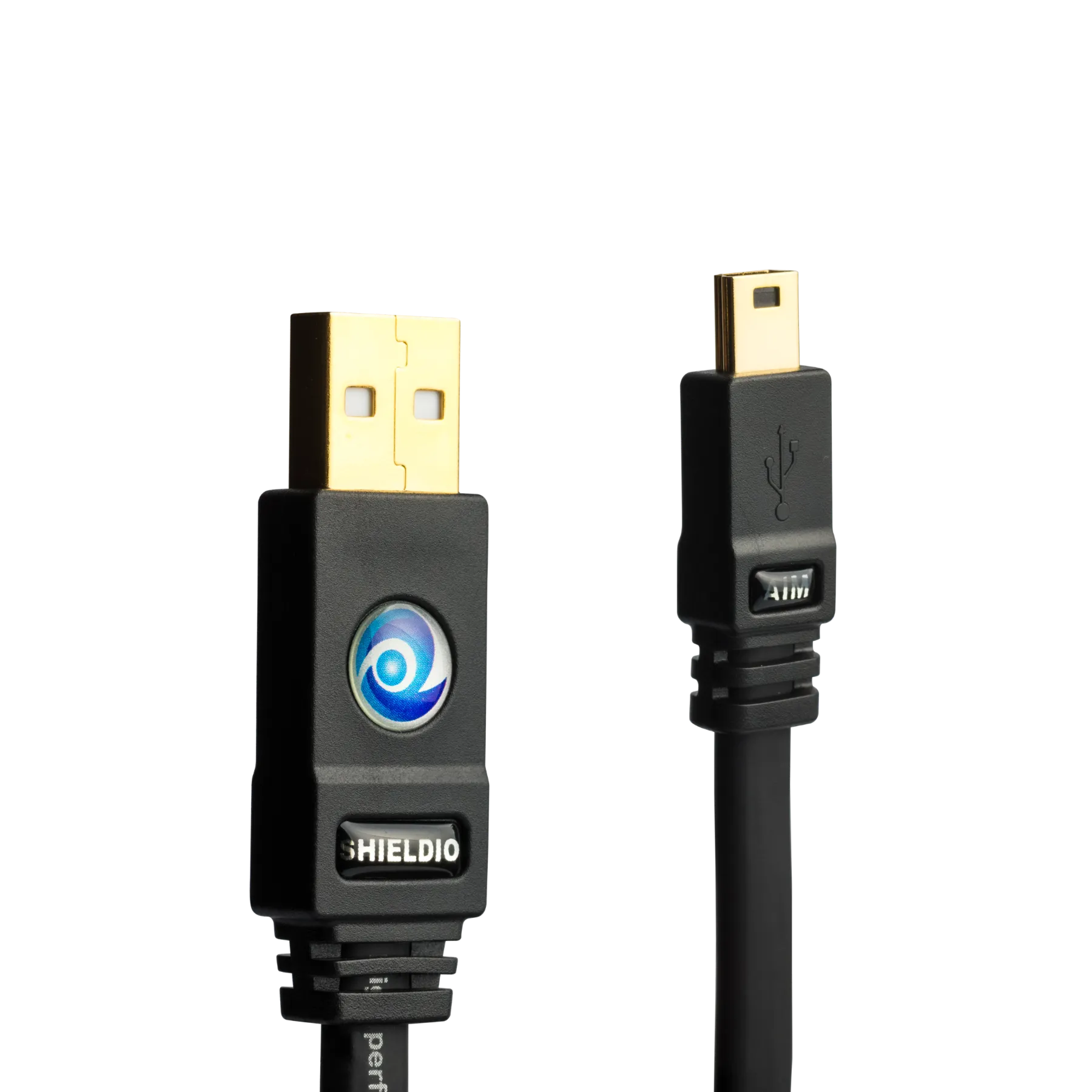

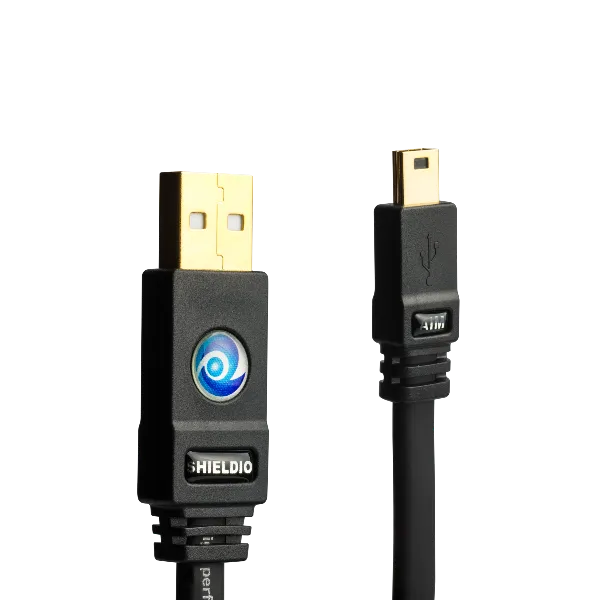

Connector Type | USB "A"plug / USB "Mini B"plug |
|---|---|
Connector Size | Type A: W15.50mm x H41.50mm x D7.60mm |
Connector Shield | All Around Copper Shell + Copper Shield |
Connector terminal | Gold Plated |
Standards | USB 2.0(USB High/Full speed) |
Cable Size | 6.5mm x 3.5mm(Flat Shape) |
Cable Color | Black |
Conductor Size | AWG28 |
Number of conductor | Twisted Pair x 2(4pcs) |
Cable Shield | High Quality Aluminum Shield |
* All of the names and specifications of our products comply with the USB standards.
Example of connecting
Product Lineup
■ A-Micro B
Model Number
Length
UM1-C0015
0.15m
UM1-C005
0.5m
UM1-C010
1m
UM1-C015
1.5m
UM1-C020
2m
UM1-C030
3m
■ A-Mini B
Model Number
Length
UM1-N0015
0.15m
UM1-N005
0.5m
UM1-N010
1m
UM1-N015
1.5m
UM1-N020
2m
UM1-N030
3m
Sales end in Mar, 2024
