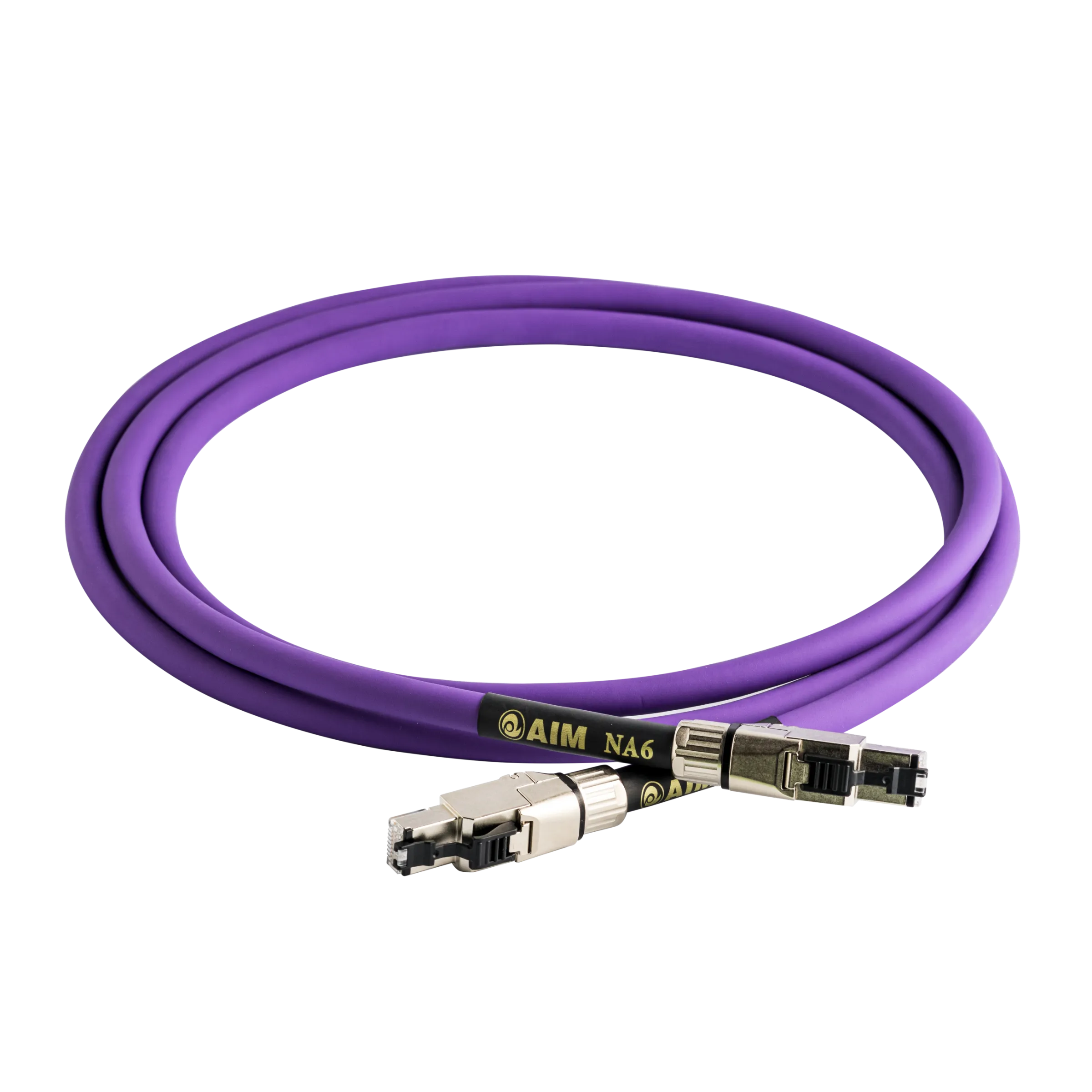

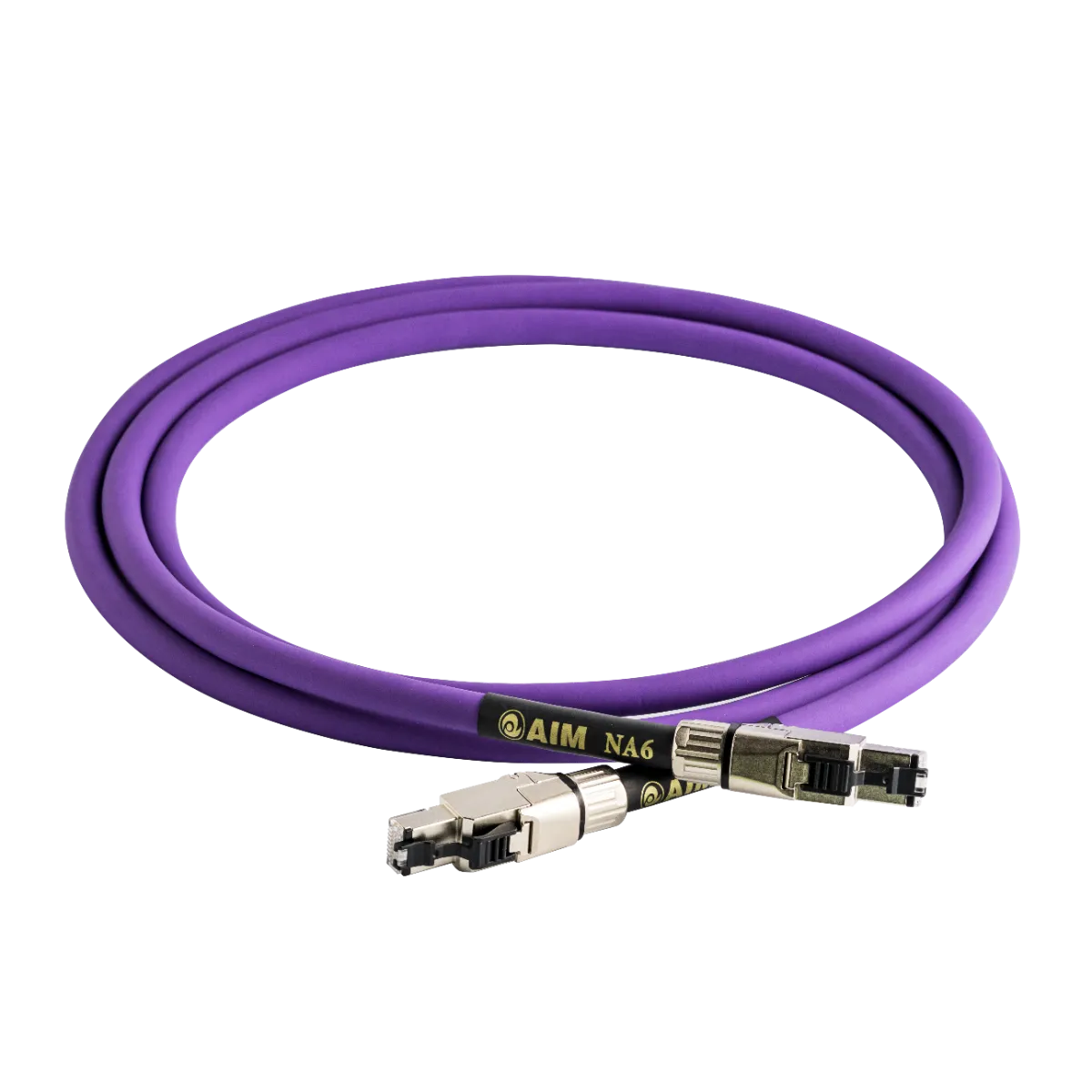

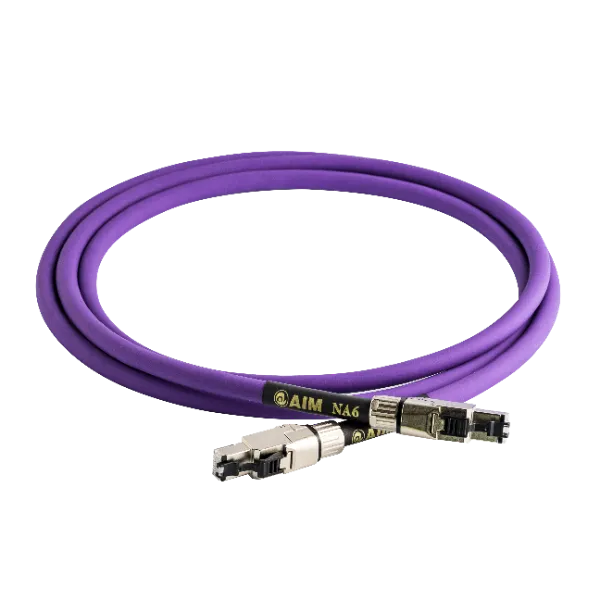

NA6
High Performance Ethernet cable
Features
A high-level noise control became a reality by a high-performance three-layer shield structure that combines different materials.
Dedicated development of inner sheath that formulated with conductive functional material.
The asymmetrical structure are disigned to be less susceptible to the external environment.
*This content represents the characteristics of each product and is not an actual measurement value.
Specification
Connector | 8P8C Modular connector(RJ45) |
|---|---|
Connector Size | W13.9mm x H55.6mm x D16.3mm |
Connector Structure | 360 degree shielding with die-cast nickel-plated zinc |
Standard | Compliant with ANSI/TIA/EIA-568-B & IEC 60603-7-5 |
Outside Diameter | 9Φ(mm) |
Cable Color | Purple |
Conductor | Single wire AWG24 |
Number of conductor | Twisted Pair x 4(8) |
Shield Structure | OFC(high pure oxygen-free copper) |
Conductor Coating | Specially developed foamed polyethylene insulation |
Drain Wire | Asymmetric structure |
Cross-section Diagram
Utilizes the 3 layers of different materials shielding structure, using aluminum shield, copper shield and high density copper braided shield.
Drain Wire: Asymmetric Structure
The asymmetric design utilizing drain wires at the end of the connectors are asymmetrically installed (grounded and not grounded), the cable has to be installed in the correct direction, for the optimal performance.
Product Lineup
Model Number
Length
NA6-005
0.5m
NA6-010
1m
NA6-015
1.5m
NA6-020
2m
NA6-030
3m
NA6-050
5m
