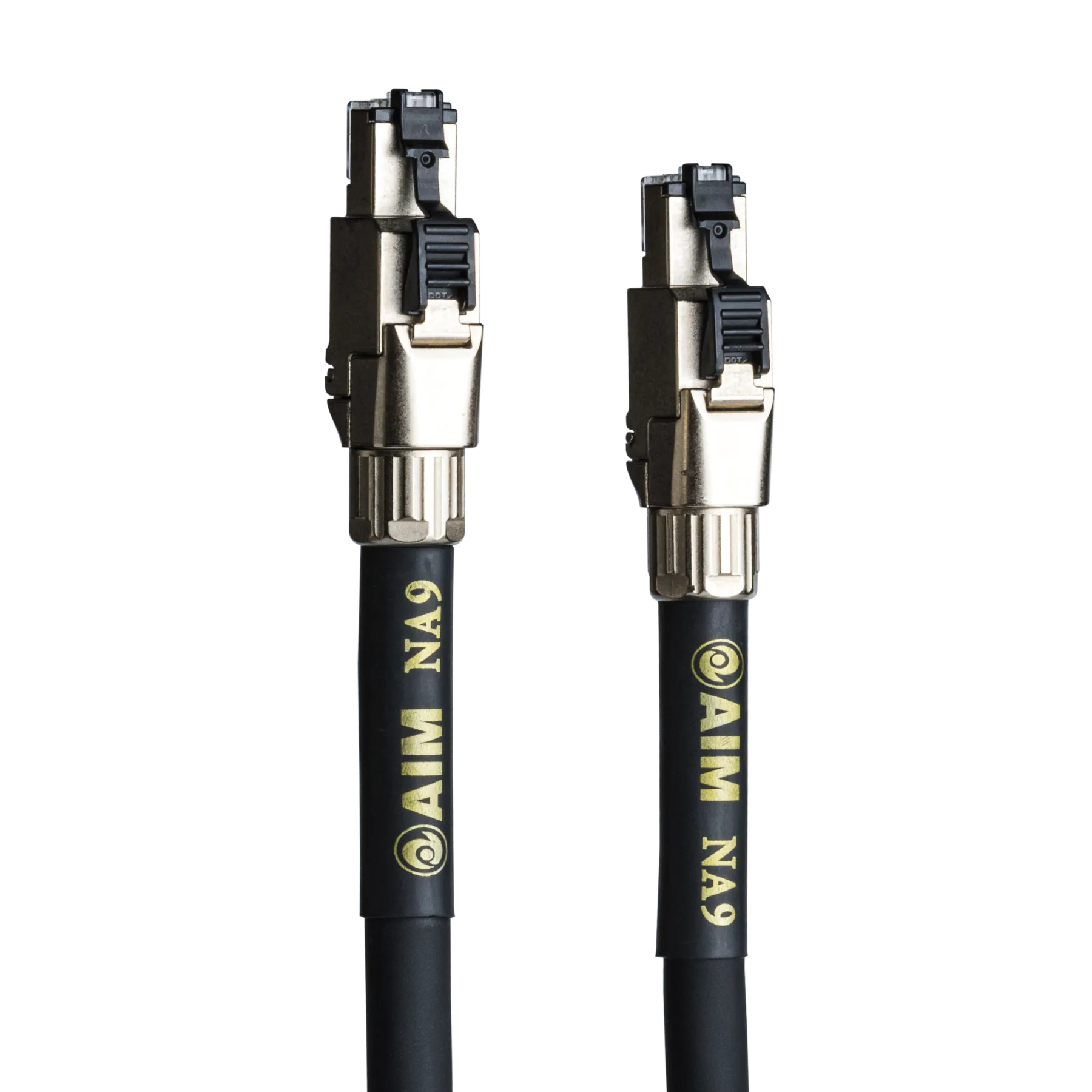

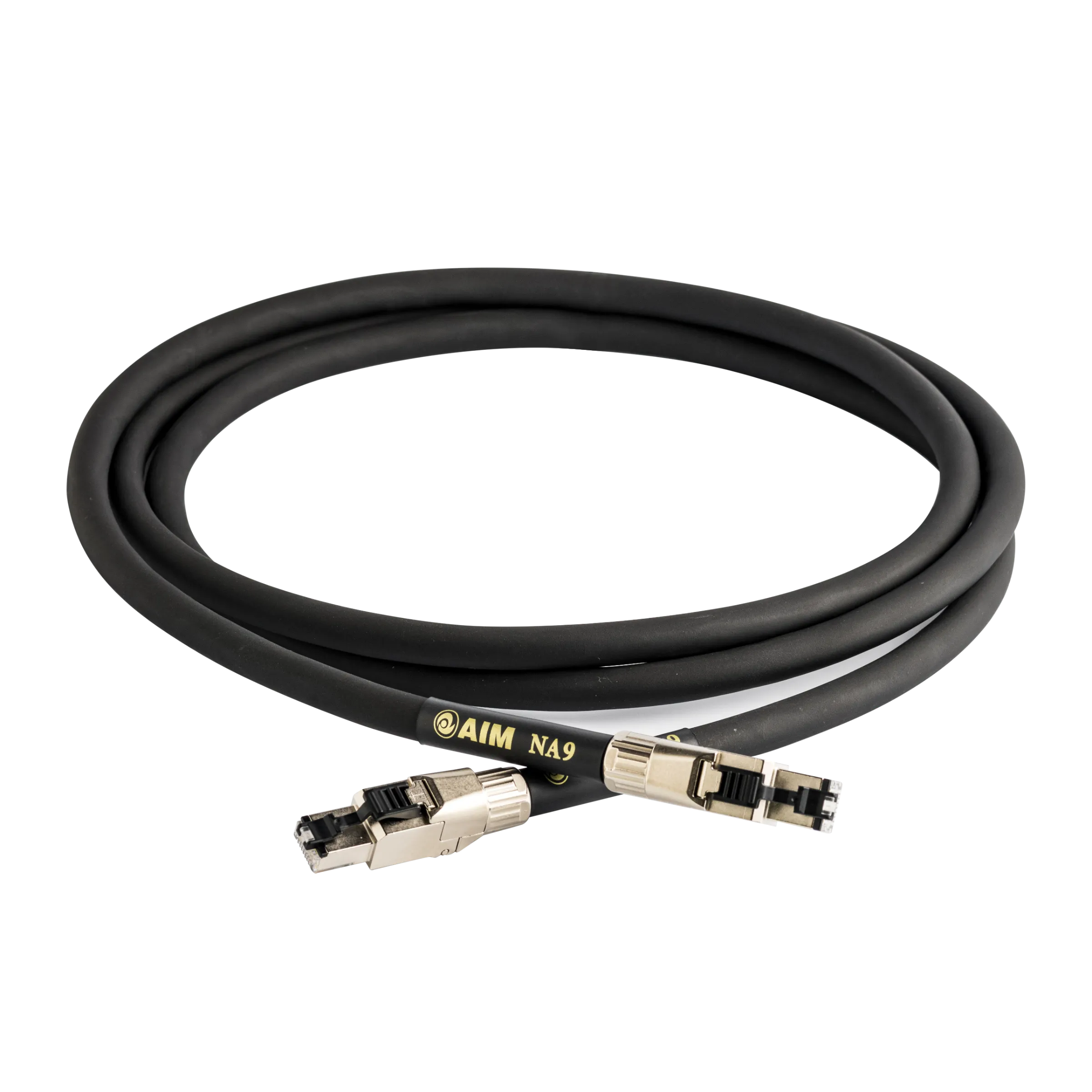

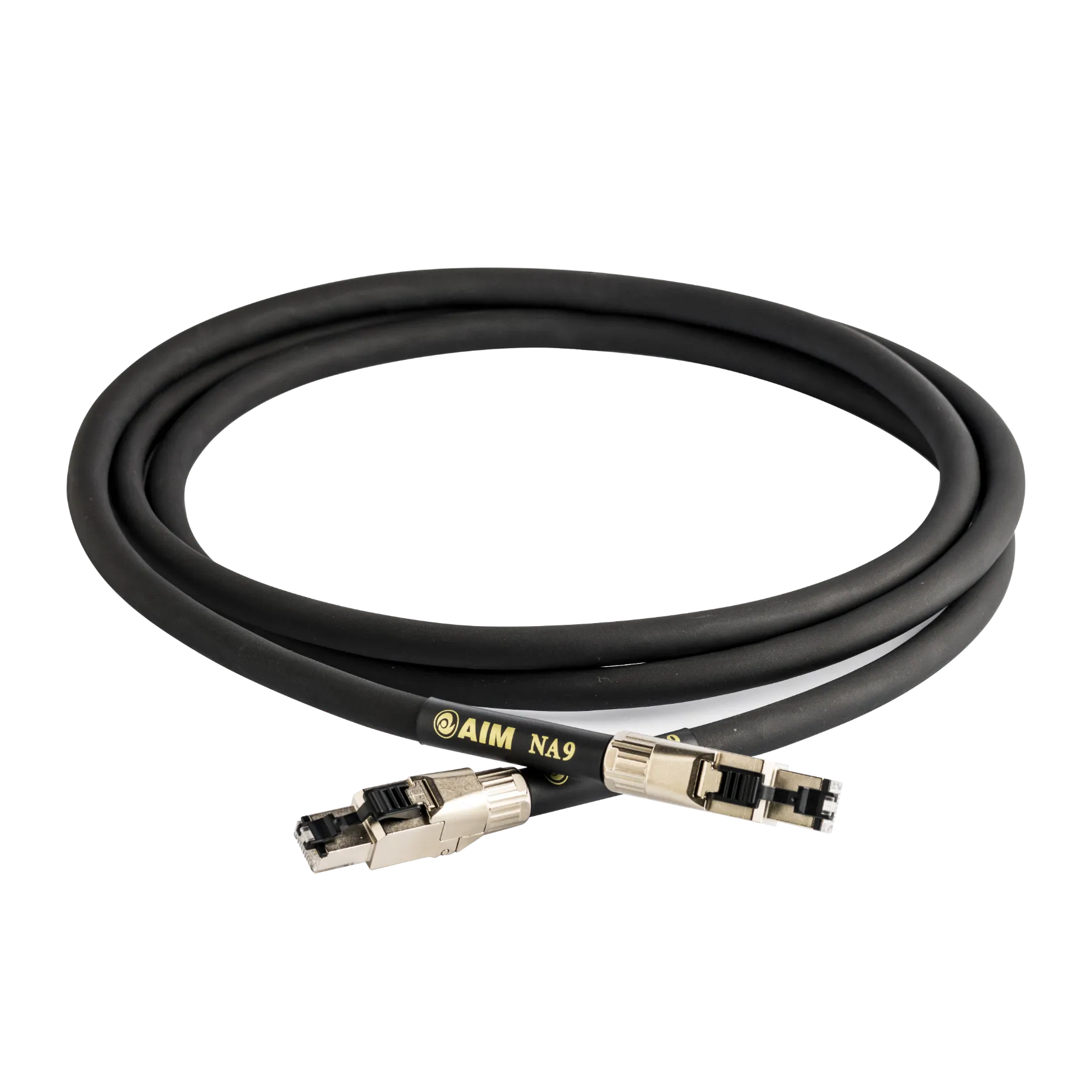

NA9
Flagship Ethernet cable
Features
New development "Hoplon", combining 4 different materials of layers shielding structure.
Uses Asahi Kasei Corporation's Electromagnetic Interference suppression sheet PULSHUT®MU for each twisted pair cable.
Dedicated development of inner sheath that formulated with conductive functional material.
* PULSHUT® is a trademark of Mitsui Chemicals Asahi Life Materials.
*This content represents the characteristics of each product and is not an actual measurement value.
Characteristics of Hoplon
< Pulshut®︎ MU >
Pulshut removes radiation noise emitted by the cable itself and conduction noise flowing in from the power supply, reducing unnecessary noise in the acoustic space.
< Copper shield >
It has high shielding performance over the entire area, and is particularly excellent in shielding the audio band, which is important for music playback, and prevents external noise from entering.
< High density copper braided shield>
It boasts excellent shielding characteristics in the low frequency band, and by using it together with a copper shield, it exhibits strong shielding performance.
< Aluminum shield >
It has excellent shielding characteristics in the high frequency band, and is resistant to cracks when wound around paired or multi-twisted strands, and has good flexibility.
Specification
Connector | 8P8C Modular connector(RJ45 type) |
|---|---|
Connector Size | W13.9mm x H53.8mm x D16.3mm |
Connector Structure | 360 degree shielding with die-cast nickel-plated zinc |
Standard | Compliant with ANSI/TIA/EIA-568-B and IEC 60603-7-5 |
Outside Diameter | 10Φ(mm) |
Cable Color | Black |
Conductor Size | Single Line AWG22 |
Number of conductor | Twisted Pair x 4(8) |
Conductor Material | OFC(high-pure oxygen-free copper) |
Conductor Coating | Specially developed foamed polyethylene insulation |
Drain Wire | Symmetrical structure |
Cross-section Diagram
Introduction of the "Hoplon" which is 4 layers of different materials shieding structure, using PULSHUT, aluminum shield, copper shield and high density copper braided shield.
Product Lineup
Model Number
Length
NA9-005
0.5m
NA9-010
1m
NA9-015
1.5m
NA9-020
2m
NA9-030
3m
