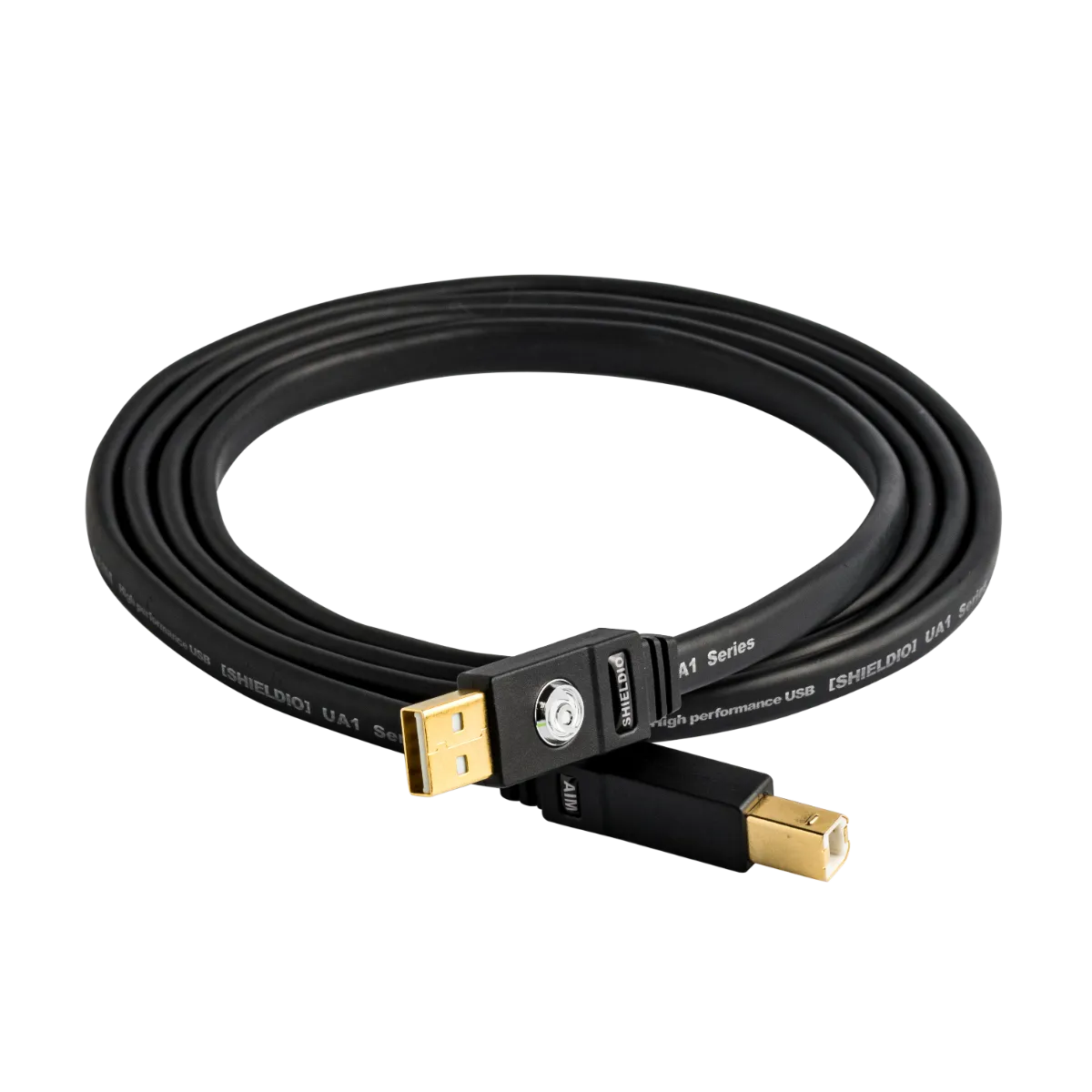

UA1
High Performance USB cable
Features
A SP separate flat structure created to optimally control distance between the signal and power lines.
Uses a hybrid conductor coated with oxygen-free copper and pure silver.
Achieves overwhelming Electromagnetic Interference reduction with PULSHUT® MU and aluminum and copper braided shields.
Reduces unwanted Electromagnetic Interference by cutting Electromagnetic Interference emitted from the device and conduction noise from the power source.
PULSHUT® is a trademark of Asahi Kasei Corporation.
Pursues the shield effect through to the end of the cable with shell shield inside the connector.
Specification
Connector Type | USB "A"plug / USB "B"plug |
|---|---|
Connector Size | Type A: W15.50mm x H36.50mm x D7.60mm(Excluding protrusions) |
Connector Shield | 100% Covered Shield + Copper Foil |
Contacts | Gold Plated |
Standards | USB 2.0(USB High/Full speed) |
Cable Size | 8.0mm x 4.5mm(Flat) |
Cable Color | Black |
Conductor Size | AWG20 & AWG25 |
Number of conductor | Twisted Pair x 2(4pcs) |
Cable Sheath | PULSHUT MU Sheath |
Cable Shield | Highly Efficient Aluminum Shield + High Density Copper Braid |
* All of the names and specifications of our products comply with the USB standards.
Example of connecting
Product Lineup
Model Number
Length
UA1-P005
0.5m
UA1-P010
1m
UA1-P015
1.5m
UA1-P020
2m
UA1-P030
3m
UA1-P050
5m
Discontinued
Find at a store near you.
