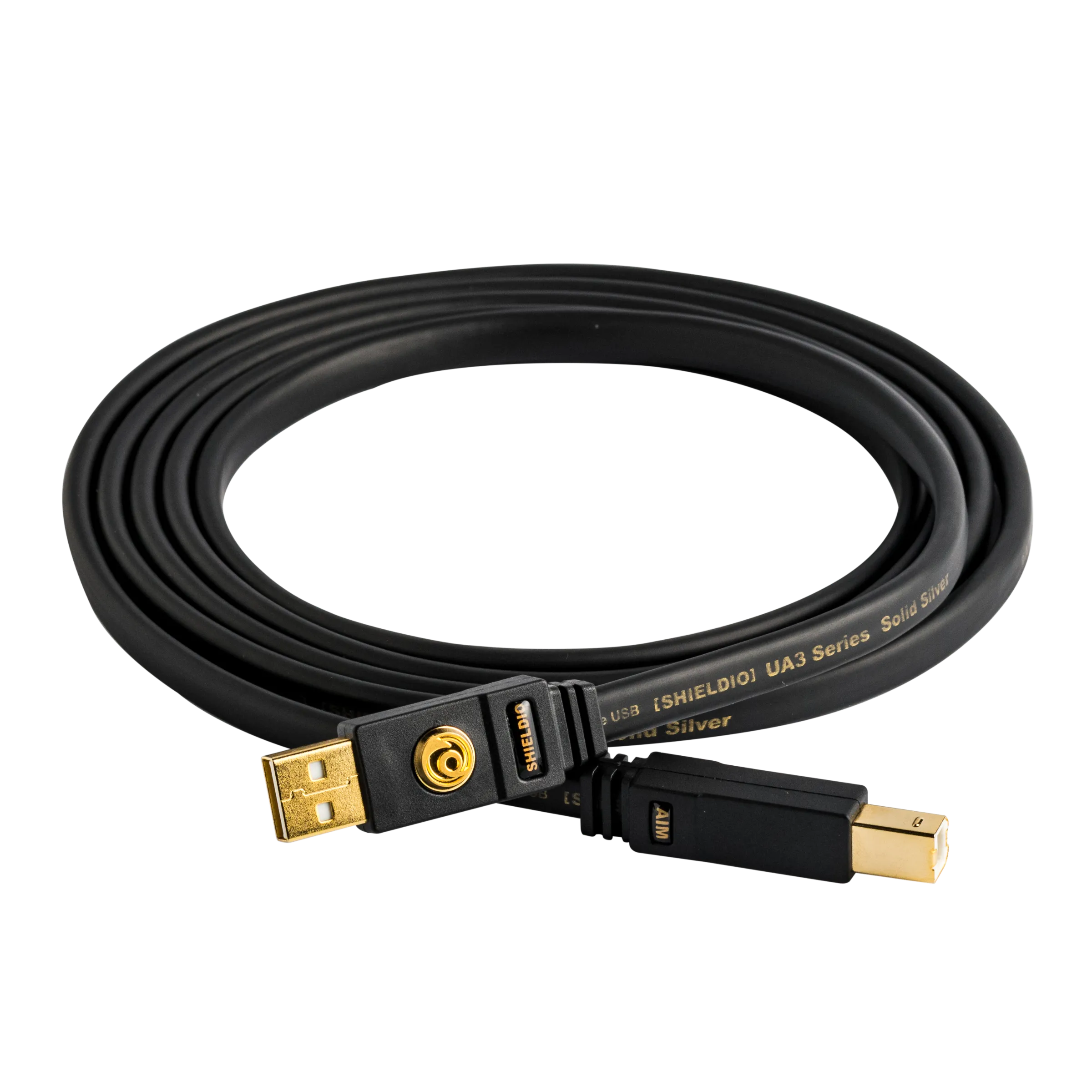

UA3
Flagship USB cable
Features
Uses pure silver(single core) conductor for the signal line and exhibits high-level transmission characteristics with the conductor size optimized.
Achieves overwhelming Electromagnetic Interference reduction with Mitsui Chemicals Asahi Life Materials' PULSHUT® MU and a design that brings the most out of the characteristics of the materials.
Reduces unwanted Electromagnetic Interference by cutting Electromagnetic Interference emitted from the device and conduction Electromagnetic Interference from the power source. PULSHUT® is a trademark of Asahi Kasei Corporation.
Arranges PULSHUT® sheath and aluminum and copper braided shields for each line and reduces Electromagnetic Interference between the lines with a double-sheath, quad-shield structure.
Adopts an SP separate flat structure that makes the optimum management of distance between the signal and power line and also any twists possible at all times.
Pursues the shield effect through to the end of the cable with copper and gold-coated shell shield inside the connector and copper-plated shield outside.
Specification
Connector Type | USB "A"plug / USB "B"plug |
|---|---|
Connector Size | Type A: W15.50mm x H36.50mm x D7.60mm(Excluding protrusions) |
Connector Shield | 100% Covered Shield + Copper Foil |
Contacts | Gold Plated |
Standards | USB 2.0(USB High/Full speed) |
Cable Size | 8.0mm x 4.5mm(Flat) |
Cable Color | Black |
Conductor Size | AWG20 & AWG24 |
Number of conductor | Twisted Pair x 2(4pcs) |
Cable Sheath | PULSHUT MU Sheath |
Cable Shield | Highly Efficient Aluminum Shield + High Density Copper |
* All of the names and specifications of our products comply with the USB standards.
Example of connecting
Product Lineup
Model Number
Length
UA3-R005
0.5m
UA3-R010
1m
UA3-R015
1.5m
UA3-R020
2m
UA3-R030
3m
Discontinued
